Fire Fighting Equipment

Fire Fighting Equipment Manufacturer & OEM Supplier

We manufacture ductile iron fire hydrants, municipal water nozzles, and pressure-tested rubber-lined fire hoses for municipal networks, industrial facilities, and high-rise standpipe systems. All assemblies are engineered to withstand continuous operating pressures up to 1.6 MPa (232 PSI) and undergo 100% hydrostatic shell and seat testing prior to shipment.

First 12 3 4 Last 1/4

Municipal & Industrial Fire Fighting Product Range

01/

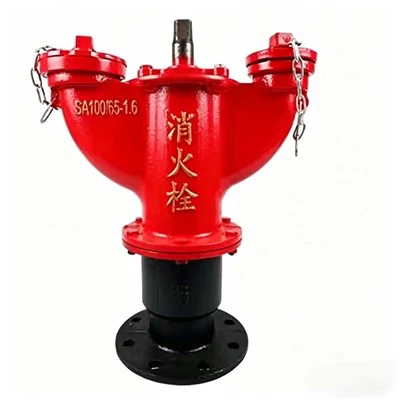

Above-Ground Hydrants
Main Models / Standard Types: SS100/65, SS150/80, SQS100, SQS150
Size Range (Inlet / Outlet): DN100 / DN150 Inlet, DN65 / DN80 Outlet
Pressure Rating: 1.0 MPa - 1.6 MPa (PN10/PN16)
Key Technical Features: Dry/wet barrel design, electrostatic fusion-bonded epoxy exterior, automatic frost-proof drain valve, flanged base.

02/

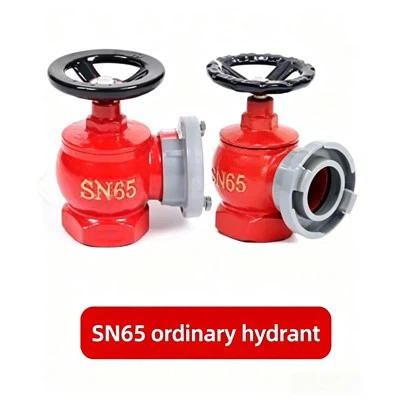

Underground & Indoor Hydrants
Main Models / Standard Types: SN65, SNW65, SNZ65, SNS65
Size Range (Inlet / Outlet): DN65 (2.5 inch) Inlet & Outlet
Pressure Rating: 1.6 MPa (232 PSI)
Key Technical Features: Compact ductile iron body, threaded or flanged inlet, cast bronze/brass valve seat, integrated drainage structure.

03/

Fire Hose Nozzles
Main Models / Standard Types: QZ, QMG16-DN50, QMG19-DN65
Size Range (Inlet / Outlet): DN50 (2 inch), DN65 (2.5 inch)
Pressure Rating: 0.6 MPa - 1.6 MPa
Key Technical Features: Die-cast aluminum alloy or forged brass, multi-position lever/rotary switch for straight jet and fog spray pattern adjustment.

04/

Lined Fire Hoses
Main Models / Standard Types: EPDM / Rubber Lined Woven Hose
Size Range (Inlet / Outlet): DN50, DN65, DN80; Standard Lengths: 20m, 25m, 30m
Pressure Rating: Working: 0.8 to 1.6 MPa; Burst: 2.4 to 4.8 MPa
Key Technical Features: High-tenacity synthetic polyester filament jacket with smooth vulcanized EPDM inner liner, fitted with Storz, NH/NST, or BS336 couplings.

Materials & Technical Specifications

Category	Parameter	Specifications
Hydrant Body & Valve Assemblies	Body & Bonnet Material	Ductile Iron (EN-GJS-450-10 / ASTM A536 Grade 65-45-12) or Gray Cast Iron (HT250 / ASTM A48 Class 35B)
Hydrant Body & Valve Assemblies	Stem & Internal Trim	Stainless Steel (SS304 / SS316) valve stem; corrosion-resistant Cast Brass / Bronze (HPb59-1 / C36000) valve seat rings and disc nuts
Hydrant Body & Valve Assemblies	Seals & Gaskets	NBR / EPDM flat washers and O-rings, ensuring bubble-tight shutoff under cold and ambient water static pressures
Hydrant Body & Valve Assemblies	Connection Flange	Drilled to EN 1092-2 PN16, ANSI B16.1 Class 125/150, or BS 4504 dimensional standards
Fire Hose & Nozzle Components	Hose Jacket Weaving	100% synthetic polyester circular woven warp and filler threads for high tensile tear resistance
Fire Hose & Nozzle Components	Hose Lining Compound	Extruded EPDM rubber liner providing low friction loss and aging resistance against ozone
Fire Hose & Nozzle Components	Nozzle Body	Die-cast aluminum alloy (A380) with anodized protective surface treatment or forged brass for corrosive environments

Manufacturing Standards & Quality Assurance

Hydrostatic Pressure Testing (100% Test): Every hydrant body undergoes shell testing at 2.4 MPa (1.5 times working pressure) for 60 seconds with zero structural deformation. Seat sealing tests are performed at 1.6 MPa with zero leakage.

Protective Coating: Exterior and interior iron surfaces are coated with Electrostatic Fusion Bonded Epoxy (FBE) with a minimum dry film thickness of 250 um. Coating adhesion is verified via cross-cut testing (ISO 2409) and salt spray exposure tests.

Hose Proof & Burst Testing: Hose samples undergo proof pressure tests at 2 times working pressure and destructive burst testing per ISO 1402 / EN 14540 criteria.

Thread & Flange Inspection: All inlet flanges and outlet threads are verified using GO/NO-GO thread plug and ring gauges to ensure secure engagement with local fire brigade adapters.

OEM Customization & Supply Options

Coupling & Thread Machining

Custom thread profiling for Storz (DIN standard), BS336 Instantaneous (UK/Commonwealth), NH / NST / NPSH (North America), and Machino (Japan).

Pressure & Flange Customization

Engineering support for PN10, PN16, PN25, or 300 PSI flange drilling and wall thickness modifications.

Surface Finishing

RAL 3000 Signal Red, RAL 3002 Carmine Red, or high-visibility industrial yellow polyurethane topcoats.

Branding & Export Packaging

Raised or recessed cast-in client logos on hydrant bodies, laser-etched nozzle data, private-label hose text printing, and fumigation-free wooden export crates.

Our Factory

FAQ

Q: What flange connection standards do your outdoor fire hydrants support?

A: Our hydrants are routinely manufactured with flanges conforming to EN 1092-2 PN10/PN16, ANSI B16.1 Class 125/150, and BS 4504. Special bolt hole configurations or raised-face designs can be machined from customer-approved CAD drawings.

Q: How do your above-ground hydrants prevent freezing in sub-zero climates?

A: Our dry-barrel outdoor hydrants feature an automatic drain valve located at the base. When the main valve stem is fully closed, the drain port opens automatically, allowing residual water in the upper barrel to drain into the surrounding gravel bed to prevent freeze cracking.

Q: What materials are used for the main valve stem and seat to prevent corrosion?

A: Valve stems are fabricated from solid stainless steel (SS304 or SS316), and valve seats are cast from high-strength brass/bronze alloys (HPb59-1 / C36000), preventing galvanic corrosion and binding after prolonged periods of inactivity.

Q: Can you supply fire hoses pre-fitted with specific national coupling standards?

A: Yes. Fire hoses and branch pipes can be pre-rigged with tied-in aluminum or brass couplings, including Storz, BS336 Instantaneous, NH/NST, or Camlock fittings according to project specs.

Q: What is the factory minimum order quantity (MOQ) and standard lead time?

A: Standard MOQ is 50 pieces for fire hydrants and 1,000 meters for rubber-lined fire hoses. Regular production lead time ranges from 25 to 35 days following order confirmation and drawing sign-off.

Q: What test documentation accompanies each export consignment?

A: Each shipment includes a Factory Acceptance Test (FAT) dossier containing hydrostatic test certificates, material heat analysis reports (EN 10204 3.1), and coating thickness logs.

Request a Technical Quote

Submit your project parameters below to receive a formal quotation, engineering data sheets, and compliance test certificates within 24 hours.
