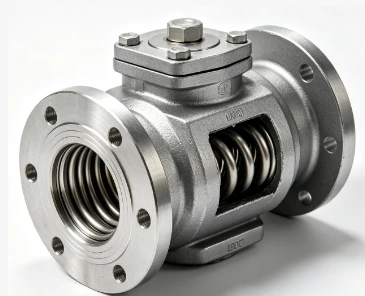

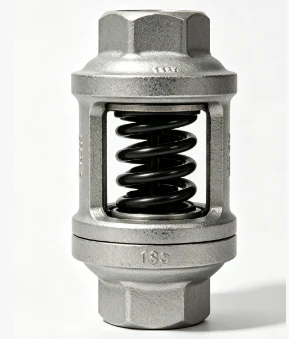

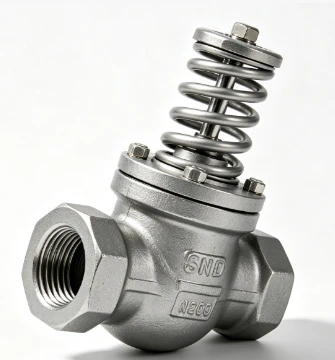

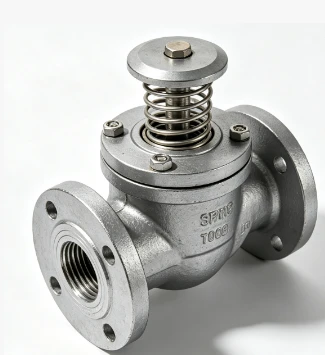

Forged Steel Spring Loaded Check Valve

The Forged Steel Spring Loaded Check Valve features an integrally forged steel valve body with a built-in spring mechanism and a disc assembly. When fluid flows in the forward direction, the medium pressure pushes the disc upward against the spring force, allowing full flow through the valve. When the flow reverses or stops, the spring immediately pushes the disc back onto the seat, creating a tight seal that prevents backflow. The spring-assisted closing action is fast and reliable, significantly reducing water hammer effects and protecting downstream equipment such as pumps, meters and pressure gauges.

Rapid response closing: Spring-loaded design ensures instant shut-off when flow reverses, minimizing backflow volume and water hammer impact.

Forged steel body: Integrally forged construction provides a denser grain structure than cast valves, offering superior pressure resistance, fatigue strength and leak-tight performance under high-pressure conditions.

Installation flexibility: Works reliably in both vertical and horizontal piping orientations, ideal for tight or complex piping layouts.

Low maintenance: Simple internal structure with replaceable spring and seat components, reducing downtime and maintenance costs.

Wide pressure range: Available from Class 150 up to Class 2500, suitable for various industrial pressure requirements.

Compact design: Small footprint saves installation space compared with swing check valves of the same size.

Carbon Steel (A105): The most commonly used body material, suitable for steam, oil, water and general industrial services. Excellent high-temperature and high-pressure performance with cost-effective pricing.

Stainless Steel (F304 / F316): Offers superior corrosion resistance, ideal for chemical processing, seawater systems, acidic or corrosive fluid pipelines.

Trim materials: Standard 410 stainless steel disc and stem; Stellite hardfacing available for severe service and high wear conditions.

Power plants and steam heating systems

Petrochemical and refinery pipelines

High-pressure fire protection systems

Oil and gas transmission lines

Boiler and industrial boiler auxiliary systems

High-pressure water treatment and desalination plants

Infrastructure and municipal engineering pipelines

Quality Warranty: 12 months from shipment date, or 18 months from production date, whichever comes first. All valves undergo 100% pressure testing before delivery.

Technical Support: Full engineering support for sizing, material selection and application guidance. Custom valve configurations available upon request.

Replacement Parts: Spare parts kits including springs, discs, seats and gaskets are available for all standard models.

Inspection & Certification: Third-party inspection services such as BV, SGS and TUV can be arranged. Full quality documentation including MTC (Mill Test Certificate) is provided with every order.

Delivery Guarantee: Standard models in stock for fast delivery; custom orders produced within agreed lead times with regular progress updates.
