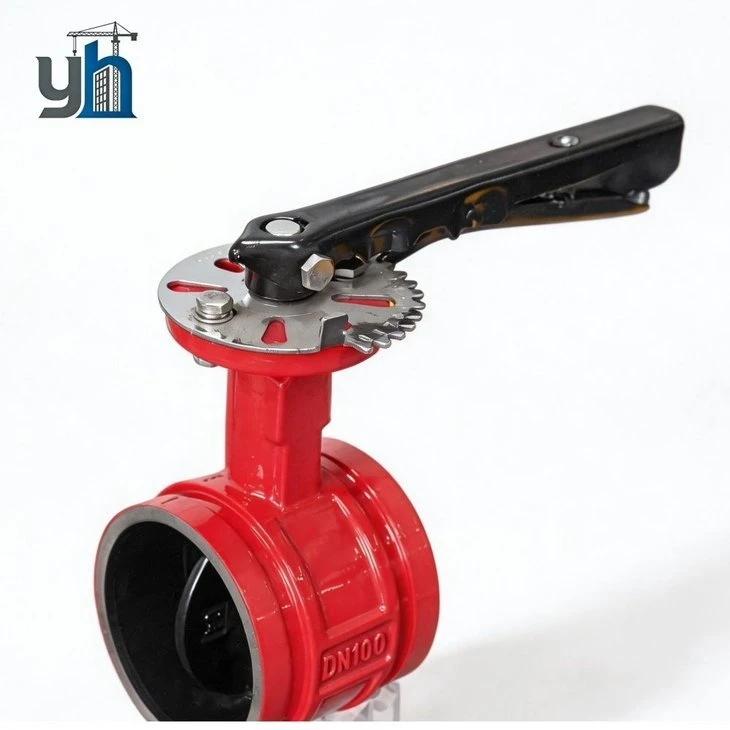

Short Pattern Zero-Offset Grooved Butterfly Valve for Water Treatment

Product Overview

Received at the incoming-inspection bench a batch of short-pattern wafer butterfly valves earmarked for water-treatment skids, grooved ends turned on the lathe before fettling.

Checked the cast body against the drawing: zero-offset single-eccentric closure, soft seat or metal seat pressed into the pocket, grooved ends turned to the ring gauge. The short face-to-face reading matches the skid gap allowance.

Measured the pressure row - Pn10 and Pn16 both proven on the hydro bench, no weep at the gland - and logged the rating plate temperature band as minus 30 C to 400 C; the YH trademark and China origin are stamped on the riveted tag.

Recorded the release schedule: five pieces is the smallest booking, and the FOB line runs US $11 to $880 per unit by bore and seat.

Key Features

• Gauge the turned groove with a ring gauge after machining
• Press the soft or metal seat into the body pocket before the bench test
• Hold Pn10 and Pn16 shut-off on the hydro seat test, dry at the gland
• Mark each unit with pressure class, seat type and the YH trademark
• Open releases at five pieces against the US $11 to $880 FOB band
