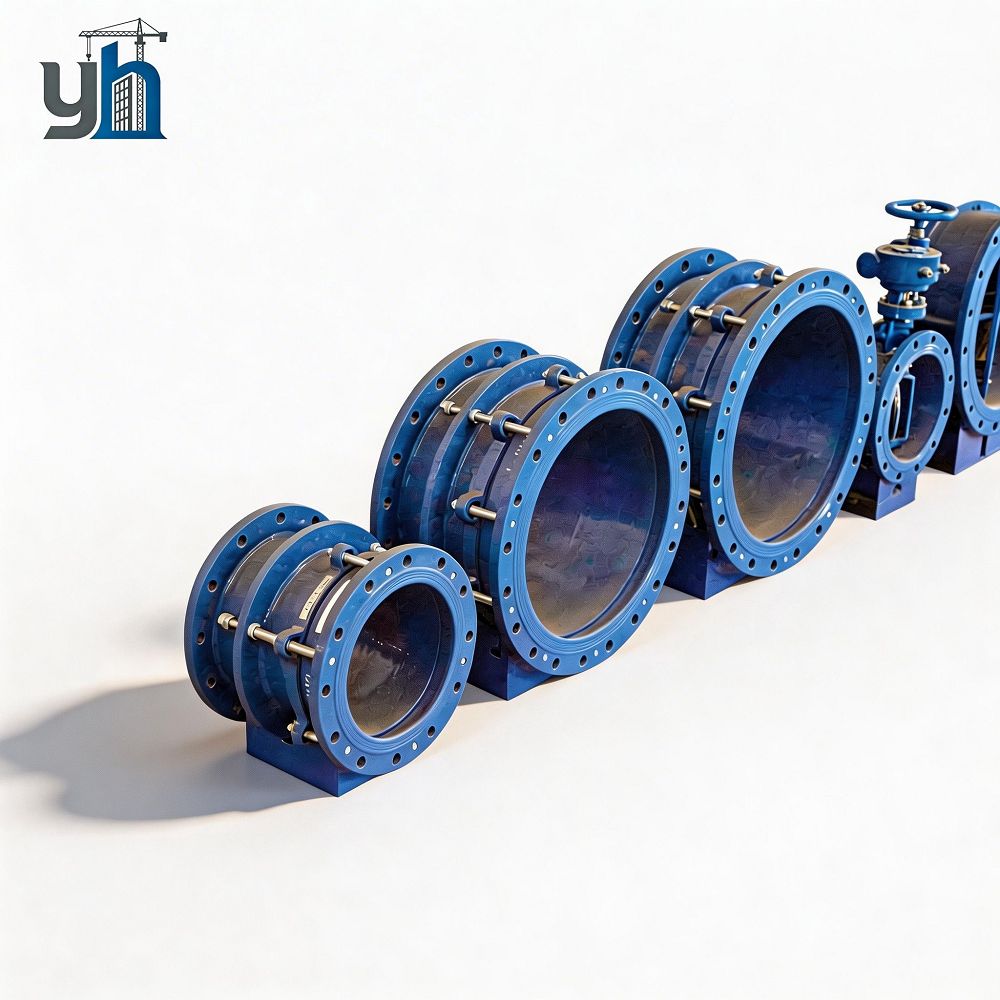

Double Flange Limit Expansion Joint
Double flange limit expansion joint is made of carbon steel or ductile iron with an integrated structure, combining expansion, compensation, limit and anti-pull-off functions. It can freely adjust axial expansion distance, accurately compensate thermal expansion and contraction, installation errors and foundation settlement displacement. It is extremely convenient for installation and adjustment, greatly improving construction efficiency. Equipped with high-quality rubber seals, it features reliable sealing, stable pressure resistance and no leakage, as well as good shock absorption and noise reduction performance. The limit device effectively prevents pipeline pull-off and ensures safer operation. With high structural strength, corrosion resistance, aging resistance and easy maintenance, it is widely used in water supply, municipal, fire fighting, HVAC and various industrial pipelines, making it an ideal fitting for long-distance pipelines and pump valve connections.
Product Parameter
|
Item |
Parameter |
Item |
Parameter |
|
Body Material |
Carbon Steel / Ductile Iron |
Nominal Pressure |
PN10 / PN16 / Class150 |
|
Connection |
Double Flanged |
Working Temperature |
-20℃ ~ 120℃ |
|
Stroke |
30–150mm Adjustable |
Seal Material |
EPDM / NBR |
|
Nominal Diameter |
DN40 ~ DN1200 |
Suitable Media |
Water, Wastewater, Neutral Fluids |
Product feature and application
【Product Features】
Double flange limit expansion joint, integrated structure, flexible adjustment of axial displacement, anti-pull-off, tight sealing and no leakage, easy installation and maintenance, suitable for various industrial and municipal pipeline systems.
【Applications】

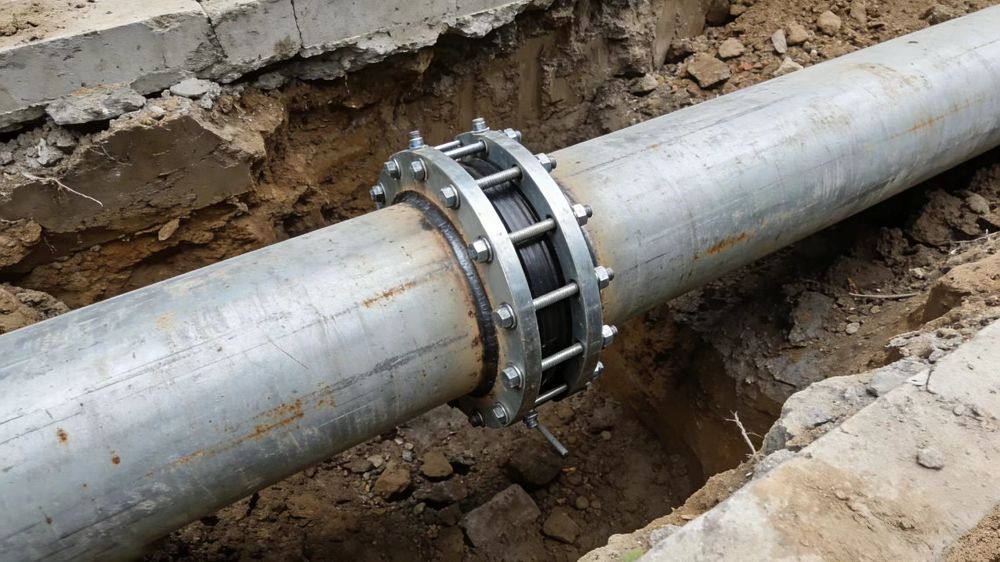

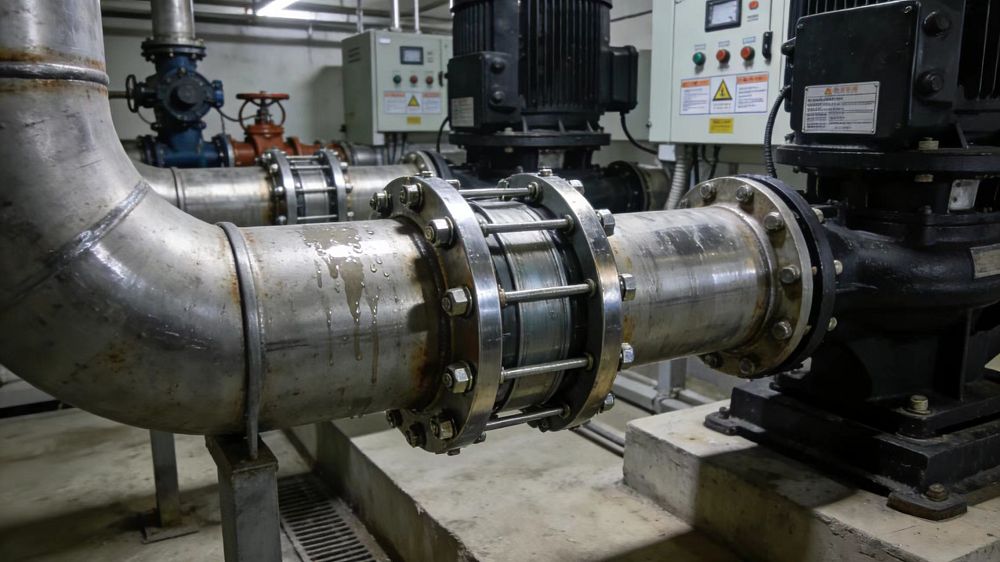

Widely used in municipal water supply and drainage, industrial pipelines, effectively solving problems such as installation deviation and pipeline displacement, ensuring stable operation of the pipeline system.
Product details

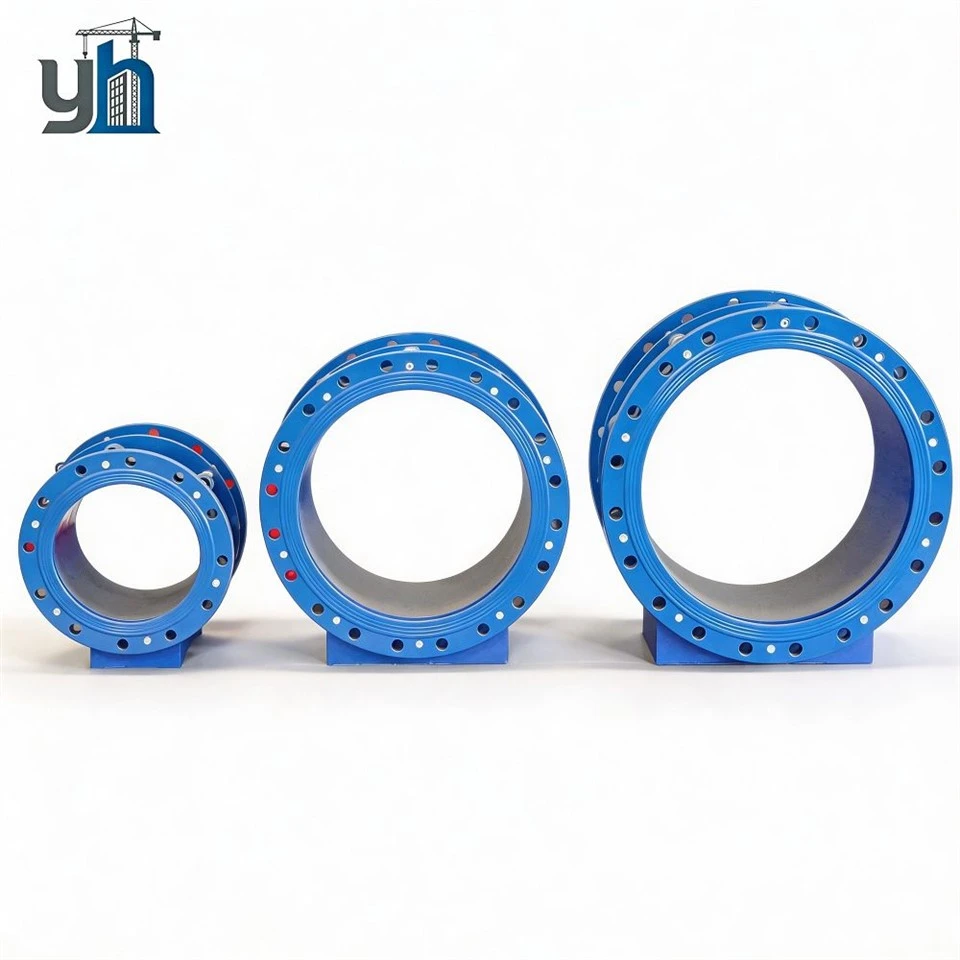

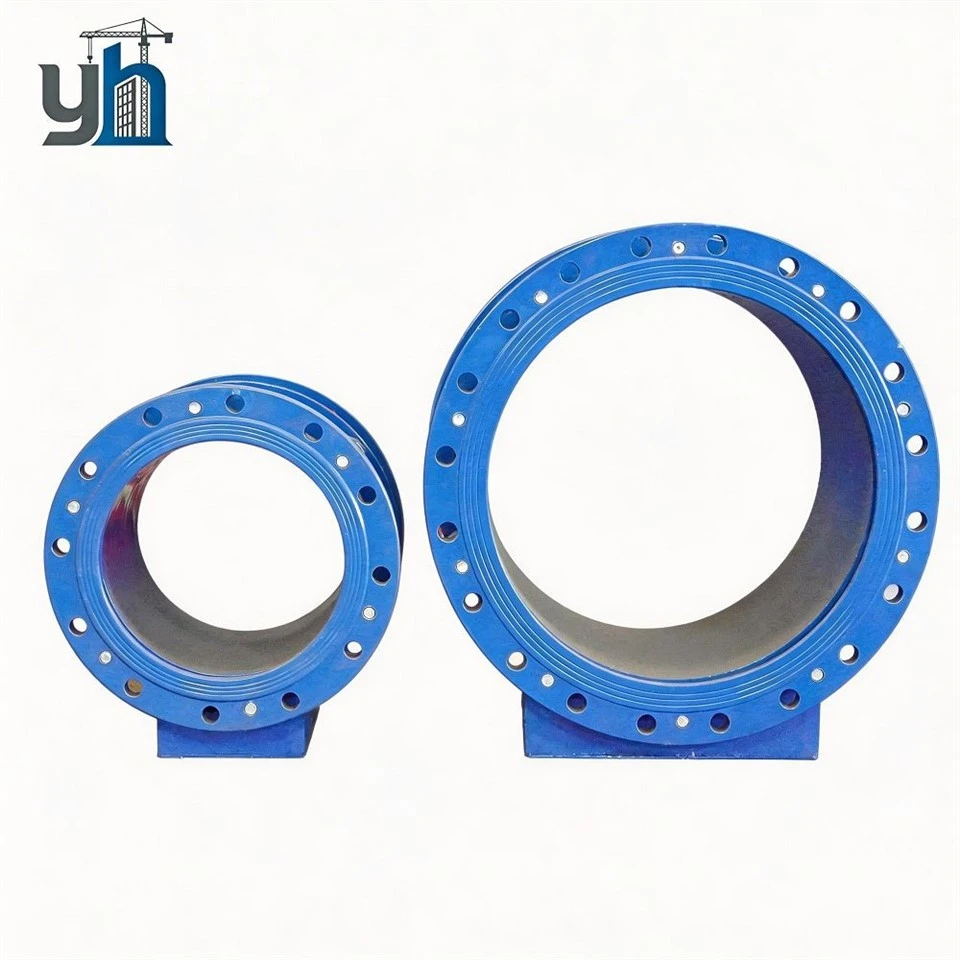

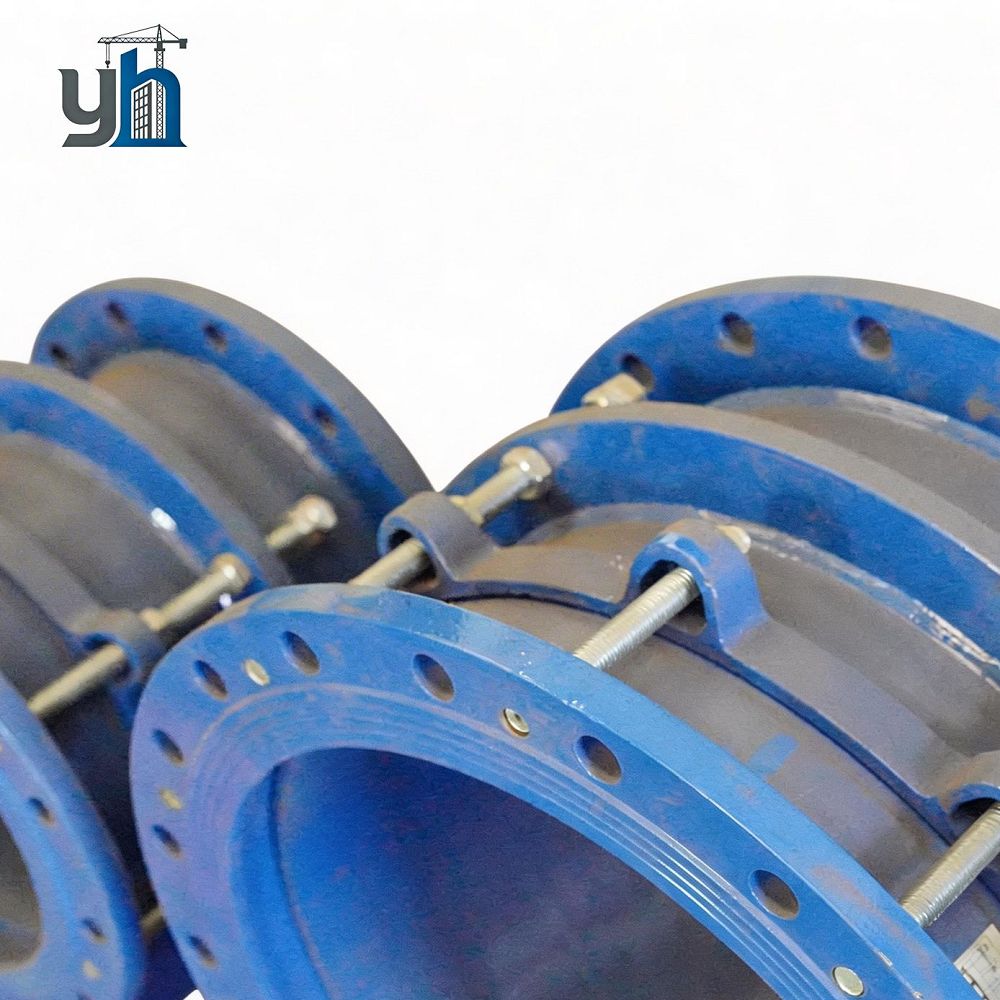

This product is made of ductile iron, with a blue spray-coated surface that is corrosion-resistant and aesthetically pleasing. It integrates displacement compensation and anti-pull-off functions, featuring tight sealing, easy operation and installation, suitable for industrial and municipal pipeline systems.
Product transport package
This product is packed in accordance with international export standards. It is fully protected by thickened corrugated boxes, with pearl cotton and foam lining to prevent collision and vibration damage during transportation.
Product name, specifications, model, manufacturer, and customs declaration information are clearly printed on the outer package to meet international shipping requirements. Each unit is individually packed with a quality certificate and test report for smooth customs clearance.
The package conforms to standard sea and air freight dimensions. Custom labeling is available upon request, ensuring intact delivery and efficient customs clearance worldwide.
After-sales service
● Long-term supply of spare parts and technical consultation is available to support your later maintenance.
● Any loss caused by product quality issues will be handled properly in accordance with international trade practices, with full follow-up until resolution.
